Embroidering 3D puff Satin stitch on Complex fill- Causing Bird nest

Featured Replies

Posted

DST File There's a design that i want to embroider for my brand but whenever the complex fill is done and starts with the satin stitch the machine noise goes up and it causes me Bird nesting, i never did the design i tried with 3 diffrent digitizers and all of the files they sent me got me into bird nesting and lost 3 Caps :unsure: is there an issue in the machine or the digitized files ? Please need help

i attached the DST file

I looked at your design. Here's my opinion. The design is very tight. Strange distribution of stitches into groups. It seems that the design was made in very old software that does not compile snowball arrays correctly.

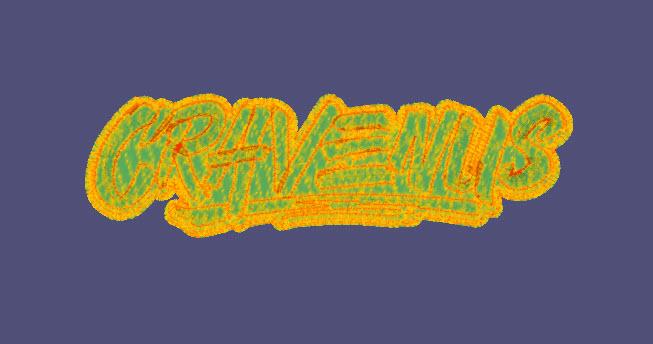

I am attaching a map of your design. Red zones are critically high densities.

Density map for machine embroidery design

  • 1 month later...

Don't know if it'll help, but it seemed to me like the there were an awful lot of "tiny" stitches, maybe try this out on some scrap...

CRAVE_HAT_DST1.dst
