How add overlap for branched areas?

Featured Replies

Posted

When i create embroidery with branched areas, how can i change overlap? Example letter a. My customer like format PXF for using in Ambassador.Β  If he resize my work, may be have a problem (non sewed areas).


Of course I can set it manually by simply digitize overlap. But as it can be set automatically? Example percentage or distance?

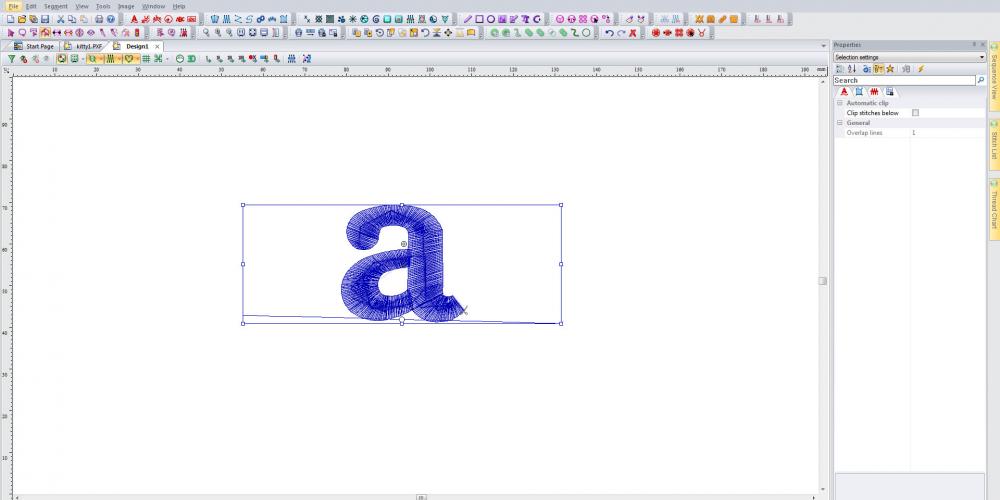

Overlap function not available for branched objects. Example letter A,Β  Parameter Overlap (shaded)Β  not nay changed




  • Author

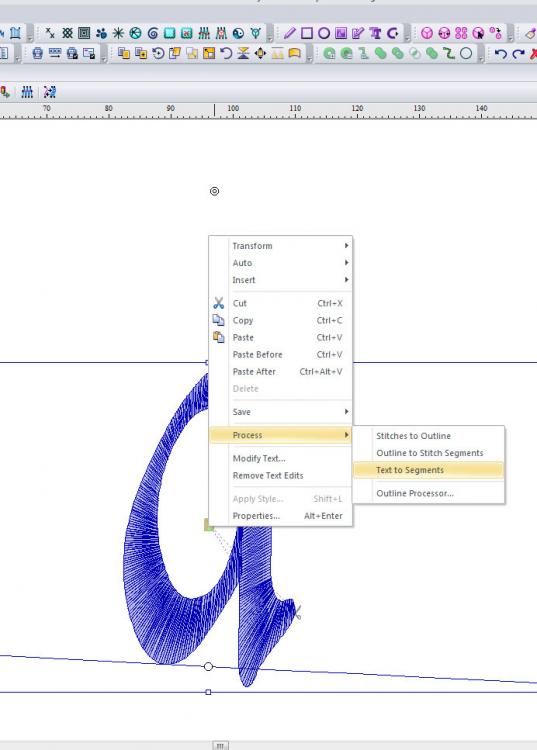

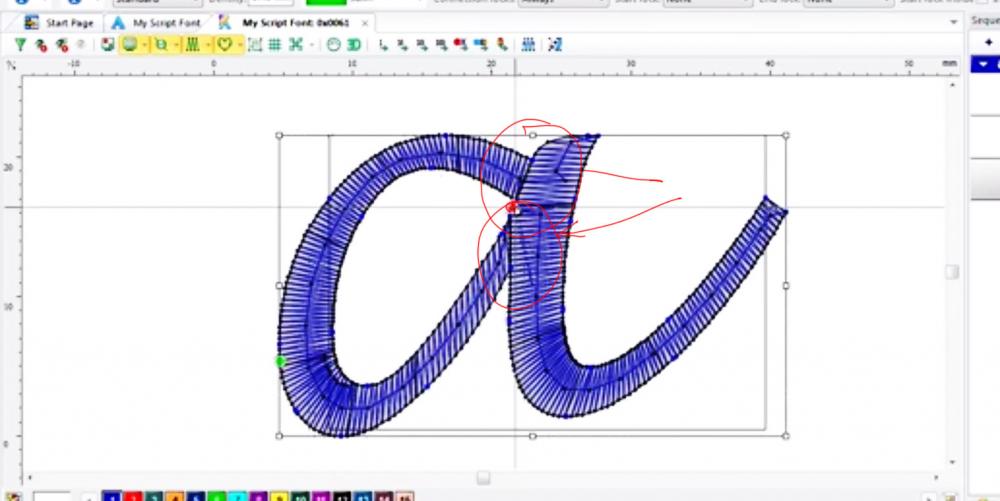

Guys, you not understand. Example, not branched object. This is text.Β  For convert letter to segment need click right mouse button on letter (CTRL+E) and choose Process --Text to Segment. After that letter may be edited as simple segment . Choose vertex tool and move dots (how you want) and create overlap manually




I read in Tajima's manual -

To use automatic overlap:
1Β  Select the branched satin segment.

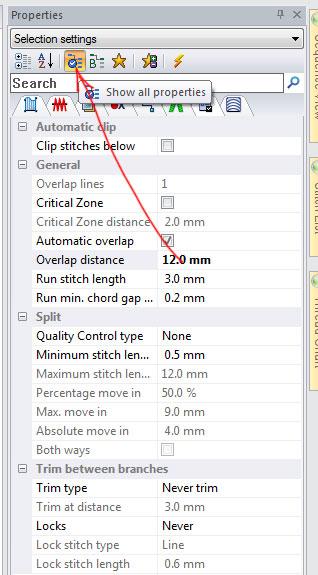

2Β  If it is not already displayed, open the Selection Settings panel.Β
You see the Segment Settings pages.
3Β  Click the Quality Control tab.
You see the Quality Control property page.
4Β  Check the Automatic overlap checkbox.
5Β  Type a value in the Overlap distance box (The Overlap distance defaults to 2.0 mm/ 0.08 in.).
6Β  Click OK.

Your branched segment is altered accordingly.

Β

Where this option? I not found.
