Recommended Posts

Latest release: Version: 14.1.5.5384.

Date: 07-28-2013

CHANGES IN TAJIMA DG/ML BY PULSE VERSION 14.1.5.5384

1 TURNING SEQUIN FILL

2.Corel Draw X6 Support

3. NEW LETTERING FEATURES

4. NEW APPLIQUE FEATURES

5. STITCH GENERATION IMPROVEMENTS

6.USER INTERFACE IMPROVEMENTS

7.EDITING IMPROVEMENTS

8.CHENILLE IMPROVEMENTS

9.INPUT / OUTPUT MACHINE FORMAT IMPROVEMENTS

10.LIBRARIAN IMPROVEMENTS

11.FONT CREATOR IMPROVEMENTS

12.AUTODIGITIZING IMPROVEMENTS

13.SEIT LASER IMPROVEMENTS

More details in attached file.

What%26%2339%3bs new in Tajima DGML by Pulse 14.1.5.5384.pdf

  • Like 1
Link to comment
  • 2 months later...

TAJIMA DG/ML BY PULSE VERSION 14.1.6.5388

The following is a list of the new features and improvements since the previous official maintenance release of Tajima DG/ML by Pulse Version 14.1.
FONT SETTINGS – SHAPE OFFSET
We have added a new function for applying an offset to segments when they are being used in a font.  The setting is added to the segment when creating a character in the Font Editor.  With a letter open in the Font Editor, you will see a new setting in the segment properties named Font Settings – Shape Offset
&
Distance.  This setting is only available when creating a font in the Maestro level.
Shape Offset Settings
Instead of applying the offset at the time of creating the font, the offset will be applied when the lettering is used.  The advantage to this feature is that the offset will be applied after any width or spacing adjustments that are applied to the lettering, keeping the offset consistent after compression or a width adjustment to the lettering has been applied.  This is useful for creating applique or laser applique fonts where the placement of the running or laser segments is crucial.;

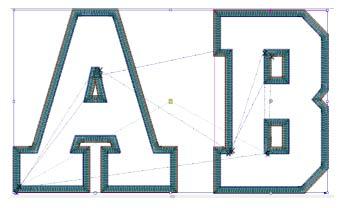

Offset Applied When Creating Text

PRESSER FOOT SETTINGS

Newer Tajima embroidery machine models such as the TMAR include the ability to control the height of the Presser Foot.  Presser Foot settings can be assigned to selected segments when creating designs in DG/ML. These settings can be found under the Commands section of segment settings.
Presser Foot Setting
TRIM / LOCK STITCH INSIDE CHARACTERS
The following settings have been added to Text segments:
Inside Trim Type, Inside Trim Threshold, Inside Trim Locks, Inside Lock Stitch Type, Inside Lock Stitch Length.
Inside Trim/Lock Settings
USER INTERFACE
Stitch Length Beads
Stitch-length beads now work with other drop-run settings.
Icons
A problem has been corrected where tool icons were incorrectly labeled
Japanese TTF Support
Improvements have been made when reading Japanese TrueType Fonts
GENERAL
Stability
Stability improvements have been made in generating stitches.
STITCH GENERATION
Close Fractal Setting
A new setting has been added to automatically close a fractal shape in a Fractal Fill segment.
Satin Stitch Generation Improvements
Stitch generation improvements were made in branched satin stitches.
Automatic Overlap Stitch Generation Improvements
The speed of generating segments with Automatic Overlap enabled has been improved.
Design Start/Stop
An issue has been addressed in a specific design that causes the start and stop points of the design to move when opened in DG/ML.
Applique
Improvements have been made in the generation of applique stitches.
Lock Stitches
Improvements have been made in the generation of lock stitches.
Underlay
Changes have been made to prevent underlay stitches from traveling outside of the shape
INPUT / OUTPUT / MACHINE FORMATS
ZSK Format
An extra normal stitch at the beginning of the design when saving designs in the Z00 format has been eliminated.
Additional Home Formats
Support for Brother PES7, PES8, and PES9 has been added.
Floppy disk support
Improvements made on saving to floppy disks.
Spooler Improvements
You can now send designs to the machine without having to save them first.
A problem has been corrected where the Machine Filter would not allow the viewing of selected machines.
Data Collection and Reporting
An issue writing machine log data for reporting has been addressed.
Support for Sali Rhinestone Machines
The GEM option now supports the writing of SHF files that are required for Sali Rhinestone Machines.
LIBRARIAN
Librarian Viewer
Printing and Design Properties functionality has been added to the Librarian Viewer level.
Link to comment
  • 1 month later...
  • 3 months later...
For all Tajima subscribers, available new  FREE Memento font from the Artwork Font Pack: Just need Agree your subscribe to Pulse news.
How to install a new font in Tajima DG/ML by Pulse v14:
1. Select Tools > Manage > Fonts.
2. In the Font Manager dialog, click Import.
3. Browse to the folder containing the font file you want to import.
4. Select a font file, and click Open.
  • Like 2
