By diver3611) Click DOWNLOAD DEMO link above
2) Choose SAVE AS and download
3) When download completes UNZIP folder
4) Open folder " Master CD "
5) Please refer to "
for software installation instructions.
Lettering & Monogramming: Single and Multiple Line Text • Circle Text • Monogram Lettering
Embroidery Fonts:100 Expertly Digitized Lettering Fonts • 10 Monogram Fonts with Built]in Decorations
Embroidery Digitizing Tools: Load Background Image • Auto Trace Background Image • Convert to Supported Stitch embroidery Types
Draw embroidery tools: Straight, Bezier, Freehand
Run: Single, Double, Bean, Motif • Satin Path
Embroidery Complex Fill: Fancy, Motif, Wave • Applique with Satin, Blanket, & Motif Stitches • Power Paste
Templates: Embroidery designs repeated along a path • Circle Template
Automated Wizards: Auto Digitizing Wizard • Cross Stitch Wizard • Split Wizard
Editing Functions: Merge Designs • Group/ Ungroup • Resize, Rotate, Flip • Optimize Entry/Exit Points • Optimize Sequence • Color Sort • Auto Baste • Shape Outlines • Stitch Edit
Supporting Features: Sequence View • Hoop Display Plus Create Your Own • Change Background Color/Fabric
Display: Grid, Stitch Points, 3D View • Stitch Simulator • Print Design Worksheet
Compatible for Windows® XP, Vista, & 7
By diver361The Pattern Maker Viewer program allows you to open, view and print any Pattern Maker pattern file (XSD). All versions of Pattern Maker are supported by this viewer. This program is available at no charge via download. Registered users of Pattern Maker may distribute this program with their patterns and/or link to this page to allow their customers to download this program.
By diver361View embroidery files, convert file formats, resize designs, read/write/format machine disks and more.
Opening or Importing (stitch) Files
View in Real Stitches
By diver361Coats EDV gives realistic previews including an enhanced 3-D photo, which can be forwarded by mail to customers, suppliers or even internally to help in obtaining design approvals. This software helps colour your designs using the Coats global shade cards, as well as creating and calculating the amount of thread you need to complete your designs.
The software can read, view and communicate all the major types of machine embroidery files, it has a host of innovative features. The software is aimed at anyone who has an interest in the embroidery supply chain and would like to view and exchange embroidery machine digitising files, specifically brand owners who need to read, comment on and approve designs that may be produced in different countries across the world. As well as embroidery professionals who need to regularly handle and store design files and wish to communicate and gain approval for their designs from their customers.
By diver361My Editor from WingsXP is even more than a machine embroidery format converter. And all because, apart from the standard features for reading and re-saving the file, the developers provided users with a little extra convenience. I believe that it is for these small bonuses that the converter is called My Editor.
With standard features (from left to right):
1) Opening, recording, inserting, etc .;
3) Tools for selecting and inverting selection;
4) Tools for manipulating the visibility of objects;
5) Navigating the project on objects and stitches;
6) Tools for manipulating the display of puncture points, stitches, contours (for native files);
7) The player to simulate the embroidery process;
8) Project information panel;
Toolbar 2 Toolbar with special features (listed from left to right):
1) A tool that opens the color manager (thread and background);
2) Color palette with the ability to control the visibility of each color;
3) Special machine functions for deletion or insertion;
Vertically on the left there is a toolbar for design manipulation (selection, scaling, rotation, stitch editing, etc.):
Each toolbar can be customized in appearance by hiding or opening tools.
The File menu is standard.
Print settings, send design by e-mail standard.
The list of file formats that the program opens:
List of file formats to save:
It is possible to manage the beginning and end of the project at its discretion (last line).
The View menu gives users several options:
Preview3D - shows the design in a realistic form.
Realistic look my editor
Toggle grid - enable or disable grid display.
Grid options - setting grid parameters.
Guidelines - opens a window for guide manipulations. In My Editor, it is possible to set guides both in the traditional way through a ruler, and through this window. But at the same time put in it the exact coordinates of the guides and close them from random editing. Types of guides in this application: horizontal, vertical, inclined, circles. You can also set the guides by right-clicking on the top ruler. And then you can get something like this:
Types of guides in my editor
Crosshair - includes a large crosshair at the tip of the mouse pointer.
Toolbar - controls the visibility of toolbars.
Rollups - allows you to display
1) ImageMap palette satellite window for easy navigation throughout the design satellite window for viewing and navigating the entire design my editor
2) Sequence manager - a window with a display of a sequence of embroidery on objects. Reorder panel of my editor objects
The Layout menu allows you to duplicate the embroidery design by specifying the number of copies and the distance between the designs:
Design duplication in my editor
The Stitches menu looks like this:
It gives users the ability to remove all short stitches smaller than a given length in the design through the window.:
removing short stitches in design
And make a recalculation of the density of the embroidery design (even stitch) when resizing it with the AutoDensity Apply tool.
This application adjusts the density to the new size on its own, according to its internal algorithms and it is impossible to control the quality.
You can also download software in official website: My editor free embroidery software
Minimum CPU: 1,5 GHz Intel or AMD 32-bit x86) processor
RAM: 2GB of RAM
Hard disk: 300 MB of free uncompressed space
Graphics card: 3D PCI-X accelerator with DirectX 9.0c, 32-bit color, and at least 256MB of RAM
Monitor Resolution: 1024x768 32bpp
O/S: Windows XP (with Service Pack 3 or later) or Vista™ or 7, or 8.1 or 10
Recommended CPU: 2+ GHz Intel or AMD 32-bit (x86) processor
RAM: 3GB of RAM
Hard disk: 300 MB of free uncompressed space
Graphics card: 3D PCI-X accelerator with DirectX 9.0c compatible drivers and at least 1GB of RAM
Monitor Resolution: 1920x1080 monitor resolution
O/S: Windows XP (with Service Pack 3 or later) or Vista™ or 7, or 8.1 or 10 Printer: Windows-compatible Laser-inkjet printer.
The following tutorials are available for this program. This will help you understand how to use this software.
By diver361This is a free converter for embroidery machines of the company EverSewn. It allows you to open files of the following formats: Tajima *.DST, Brother *.PEC, *.PES, Janome *.JEF, *.SEW, Bernina *.EXP, PFAFF *. VP3, *.PCS, Singer *.XXX, Husqvarna *.HUS, VIP.
Save only in format: *.ZHS
Function: Flip, mirror, rotate, change thread and fabric colors. Print documentation.

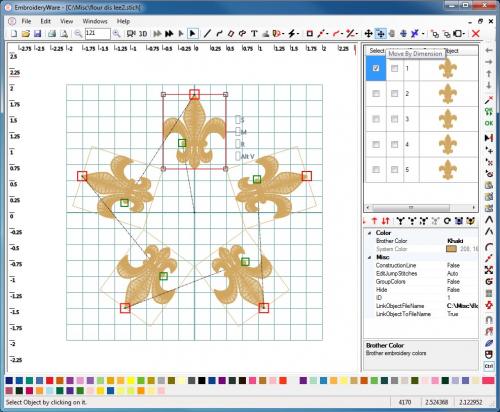

By jimmysbThe free trail version of EmbroideryWare lets you use all the features of the program for 30 days. After 30 days DST output is disabled. After your trial period is over you can continue to create embroidery designs and save them. Then when you do purchase you will already have something to stitch out.
EmbroideryWare runs on Windows 7, 8, and 10. Windows XP is not supported.
This version has the following features
Free Updates for one year Running stitches Single Double Triple/Bean Quad Fills Custom fill patterns Definable fill direction and order Combine or subtract graphic objects to create complicated fill areas Gradient fills Automatic fill ordering Satin stitches Fixed width Tapered Variable along its length Linear and curved columns Satin feathering Satin patterning using fill patterns Satin edge shapes Free motion embroidery Fixed stitch length By time straight stitch By time Zig zag Advanced editing Scale, rotate, translate, align curves or points. Offset curves Add or delete curve elements Join or break apart curves Precise dimension based nudging Arrow key nudge Embedded objects within the graphic Underlay Start path End path Embroidery objects Embed an entire embroidery design in a graphic object Link the object to a file on your system and any objects referring to this link will update automatically Resize, rotate, and move the object and all the design elements in the embedded design will update automatically Import SVG PES PNG, BMP, and JPEG bitmaps to use for digitizing Export DST SVG (future release) Decorative stitches Chain stitch Hand stitch User created, can follow any path Text Convert true type fonts to running stitches, fills and satin outlines Digitized keyboard lettering which can be scaled and follow any path Patterning Linear Circular Cut work 2 needle 4 needle Hoop sizes 360×350, 360×200, 260×200, 260×150, 120×120 mm 5×7, 4×4, 2×2 inches Custom Definable jump anchors Thumbnail view of embroidery objects Stitch simulator with 3D rendering mode Drawing aides Rulers Stitch length marker mm, cm, inch units Grid snaps Usability features Keyboard short cuts Status bar step by step instructions

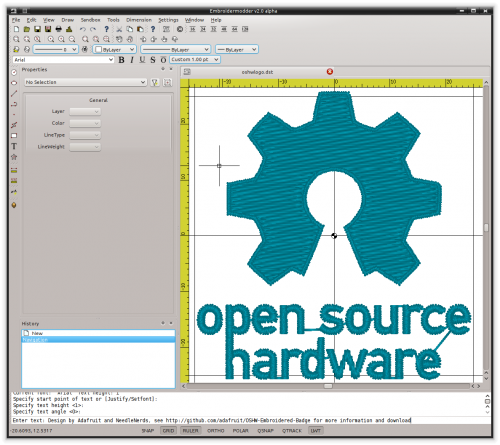

By diver361Embroidermodder is a free machine embroidery software program which allows editing, scaling, and translating sewing machine embroidery files to a variety of formats.
By diver361Free Embroidery digitizing software
EmbroideryWare embroidery program
-Create running stitch text from true type fonts loaded on you computer
-Fills using patterns
-Satin stitches, variable along the length
-Single, double, triple quad running stitches
-Complicated patterns along any path
-You can insert an image and sketch on top of it.
-Scale, rotate, translate, align curves or points.
-Add or delete curve elements.
-Output dst format
-Import PES format
-Precise postioning of graphics
By diver361Dios version for Inbro embroidery machines. Version 1.53
By diver361Proel Millennium III professional embroidery digitizing software - trial version. Have most popular digitizing tool and embroidery functions; Stitching along an outline, Column, Fill with stitches Motif on Curve and in Area, Stitch Management, Corner management, Pull compensation, Shortenings, Stitching along an outline, Borers management, Sequins deposit on Curve and in Area, Double Sequine, Chenille, 3D Effects, Autopunch, Photo embroidery, Automatic Sequence, Outline from image, Alphabets,True type lettering, True type laser lettering, Sequins deposit on Curve and in Area
By diver361Embird Manager
Converts your embroidery designs among many embroidery and quilting file formats.
Supports many embroidery hoop types and sizes.
Processes embroidery designs in ZIP and RAR archives.
Displays embroidery designs in 1:1 scale and other scales.
Displays also images - digital photos (.JPG, .TIF, etc.) and allows to sort them.
Creates (displays, prints and saves into .BMP or .JPG file) various types of design documentation, including animated .GIFs and screen saver.
Provides photo-realistic 3D preview of designs in order to enable assigning of proper colors to needles and to check the design without actual embroidering.
Contains many threads catalogs and finds thread closest to chosen color.
Reads and writes designs stored on memory cards, floppy or hard disks in various embroidery formats.
Allows to organize designs by copying them to new folders.
Embird EditorEmbird Editor
Allows to insert and delete colors or trims in embroidery design.
Joins and splits embroidery designs.Interactive free-hand splitting and automatic splitting are supported.
Moves, resizes with density adjustment, centers, mirrors, rotates and skews designs or their parts.
Allows to edit individual stitches or parts of embroidery design.
Allows to change the stitch order of embroidery design parts.
Simulates sewing of embroidery design, even in 3D mode.
Allows to reduce the number of colors.
Sorts colors smartly.
Prints template in 1:1 scale on multiple sheets.
Inserts text in various pre-digitized fonts and layouts. More about lettering here
Inserts Font Engine text automatically converted from TrueType or OpenType fonts.
Imports embroidery designs from Embird Studio, Embird Cross Stitch and Sfumato Stitch programs to save them in appropriate file format.
By diver361Software for format diskette and create load diskette for Melco EM 1. Worked in Windows 7 and XP. Checked only in 32 bit version. Archive include load discs emt_10-4-4т emt_10, emt_10t и EMT1.
Start only from diskette - Frolo_Win_720K
By diver361Most populst free embroidery software for convert embroidery formats. Also gave editing functions. Rotate and Mirror Designs
Reads and writes these embroidery formats:
.ART, .ARX, .PES, .PEC, .EMD, .GNC, .HUS, .SHV, .VP3, .VIP, .JEF, .SEW, .EXP, .PCS, .PCD, .PCQ, .PCM, .CSD, .XXX, and .DST
