Can anyone help ? problems with .PES format from .EMB format

Berry168 · February 2, 2021

I have used Hatch software to convert some pictures to an embroidery designs, they look fine in the Hatch portal and .EMB format but when exported to .PES format the blocks of colour don;t keep their format - the stitches have large ggps in them - any ideas ?

Thanks

Red Dragon 4.PES Red Dragon 4.EMB

diver361 · February 3, 2021

We will change all stitches in your embroidery design. Before that, it was satin. Satin has a stitch length limit of up to 12 mm (not all embroidery machines support). Therefore, such a file, when loaded into the embroidery machine, shows the missing part of the stitches.

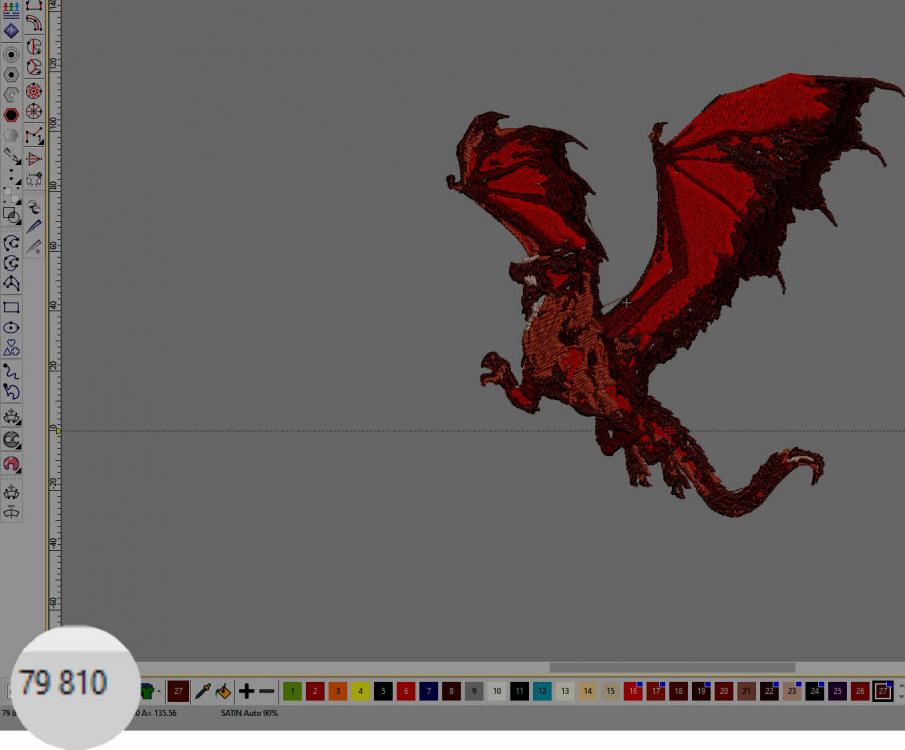

We changed it to Tatami type.

But this increased the number of stitches significantly.
Remember that some Brother embroidery machines have a design limit (usually 32,000 stitches).

New files attached.

Red Dragon 4v2.DST Red Dragon 4v2.EMB

Berry168 · February 3, 2021

@diver361 thank you so much, I haven’t got to terms with all the constraints. I will try this on my other files.

Much appreciated

Rosemary

Berry168 · February 4, 2021

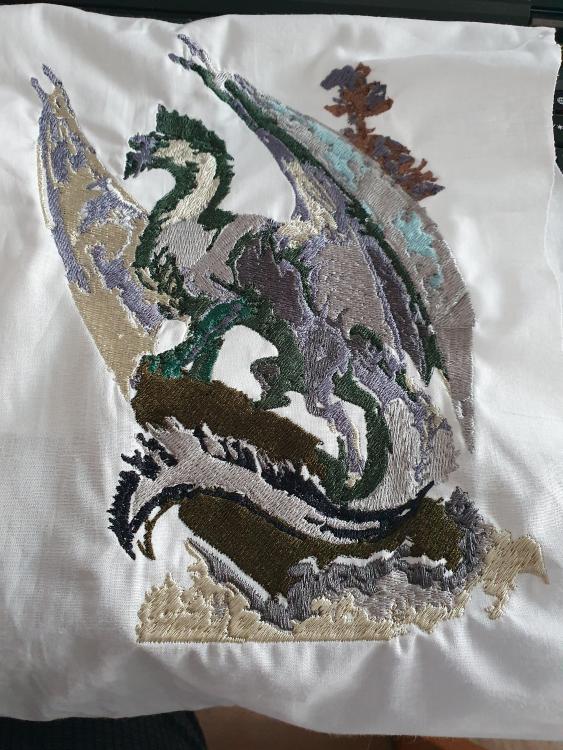

@diver361 I wanted to show you how these came out - this is the Silver Dragon, thank you again I am really pleased with them.

Dave W · February 10, 2021

Berry168.

I also use Hatch software. There is a check box you must make sure it's ticked when you use a satin fill stitch that has to cover greater that about 12mm It is the split stitch option. You can fill a large area with satin stitches and will not have gaps in it.

Berry168 · February 10, 2021

Thanks, I will try that.

asadkhan890 · May 21, 2022

I also use Hatch software. There is a check box you must make sure it's ticked when a user that has to cover greater that about 12mm It is the split stitch option. You can fill a large area with satin stitches and will not have gaps in it.
